CyberDefenders: Sysinternals Write-up
Introduction
Challenge Link: Sysinternals
Conduct endpoint forensic analysis to detect, analyze, and understand malware infections using disk images, registry artifacts, and threat intelligence. Tool used:
- FTK Imager or Autopsy: To analyze the disk image (.
E01) - AmcacheParser: To parse Amcache.hve file.
- Timeline Explorer: To view CSV files.
Q&A
Q1. What was the malicious executable file name that the user downloaded?

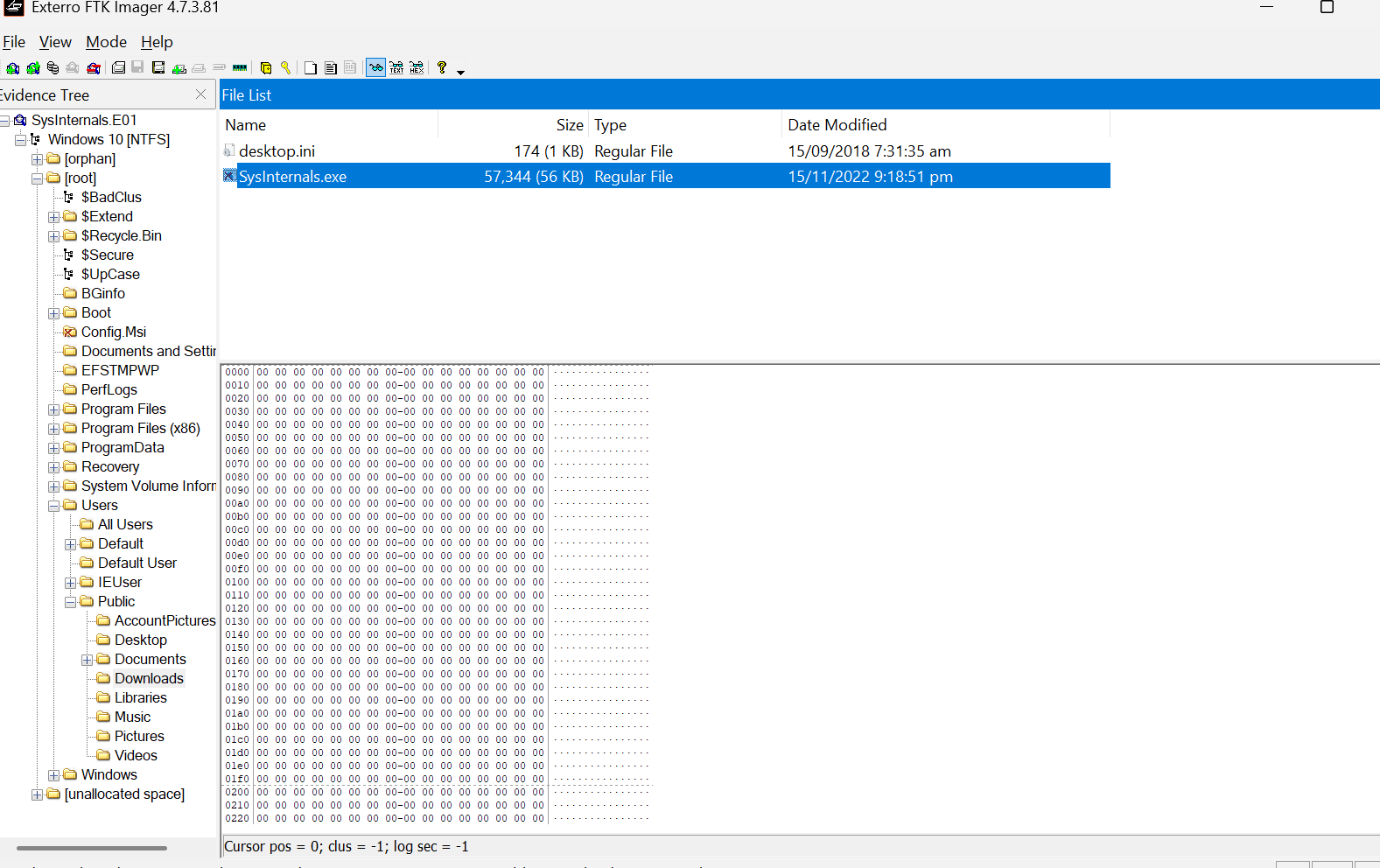

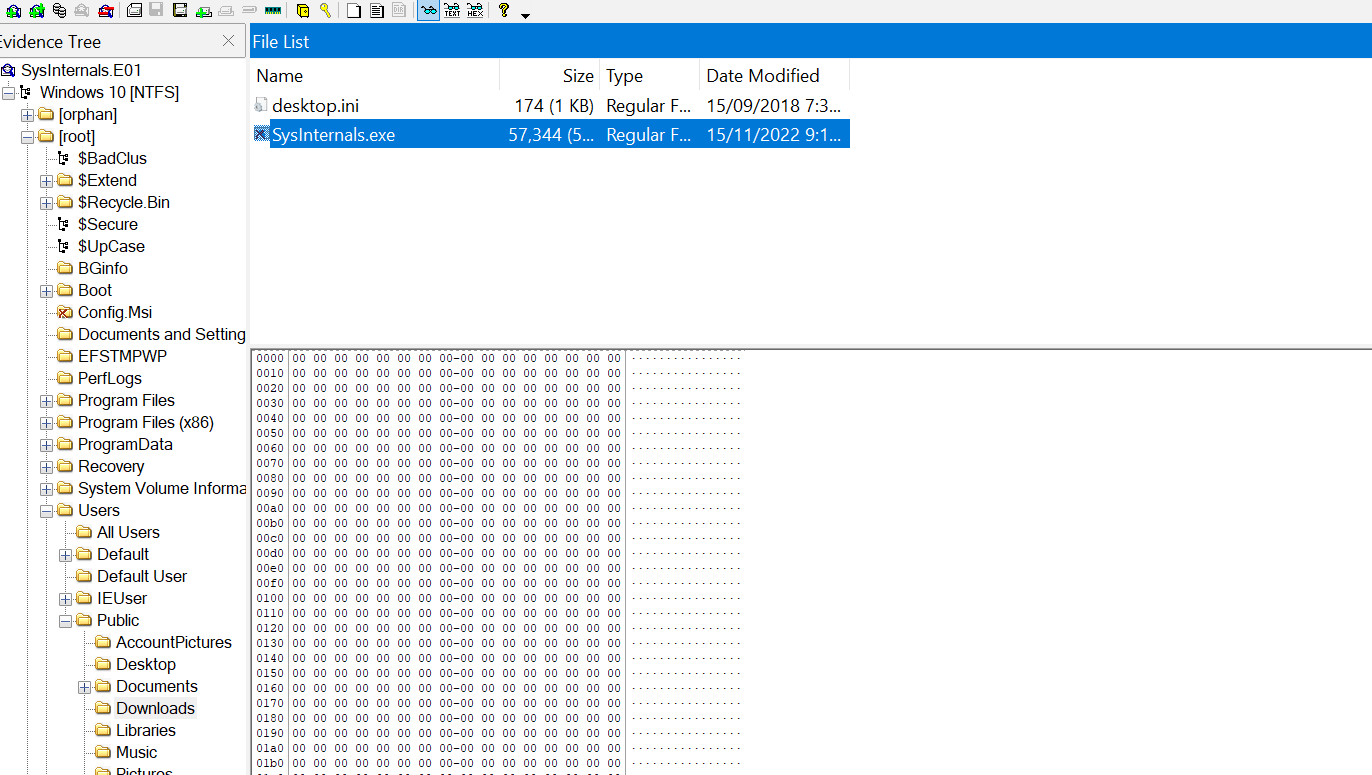

Upon inspecting the Downloads folder under the Public user, we found two files
- desktop.ini: This file is a Windows system file that stores configuration settings for the folder in which it is located, such as custom icons, view options, and display names.
- SysInternals.exe: This one is suspicious.
The real Sysinternals is a suite developed by Microsoft that contains a collection of technical utilities and resources used to diagnose, troubleshoot, and monitor Windows system environments, not a single executable file.
Q2. When was the last time the malicious executable file was modified?

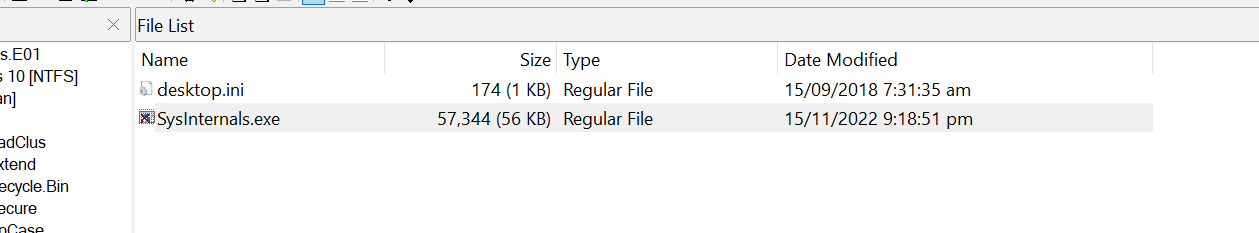

The time the suspicious executable was modified is November 15, 2022, at 9:18:51 PM.
The question expects the date to be in 24-hour format 2022-11-15 21:18
Q3. What is the SHA1 hash value of the malware?
You can export the file hash from the FTK Imager by right-clicking on the file, but as you can see in the hex viewer of the sysInternals.exefile, all the content contains zeros. This indicates that the file may have been tampered with or deleted before the disk capture, rendering direct hashing ineffective.
Thus, we will use an alternative tool, AmchacheParser. This tool parses the Amchache.hive file, which is a registry file that stores the metadata information of executed applications that have been executed on the system.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
PS C:\Users\aisha\AmcacheParser> .\AmcacheParser.exe -f ..\..\Defenders\Amcache.hve --csv 'C:\Users\aisha\Defenders'
AmcacheParser version 1.5.2.0
Author: Eric Zimmerman (saericzimmerman@gmail.com)
https://github.com/EricZimmerman/AmcacheParser
Command line: -f ..\..\Defenders\Amcache.hve --csv C:\Users\aisha\Defenders
Warning: Administrator privileges not found!
C:\Users\aisha\Defenders\Amcache.hve is in new format!
Total file entries found: 36
Total device containers found: 4
Total device PnPs found: 83
Found 36 unassociated file entry
Results saved to: C:\Users\aisha\Defenders
Total parsing time: 0.318 seconds

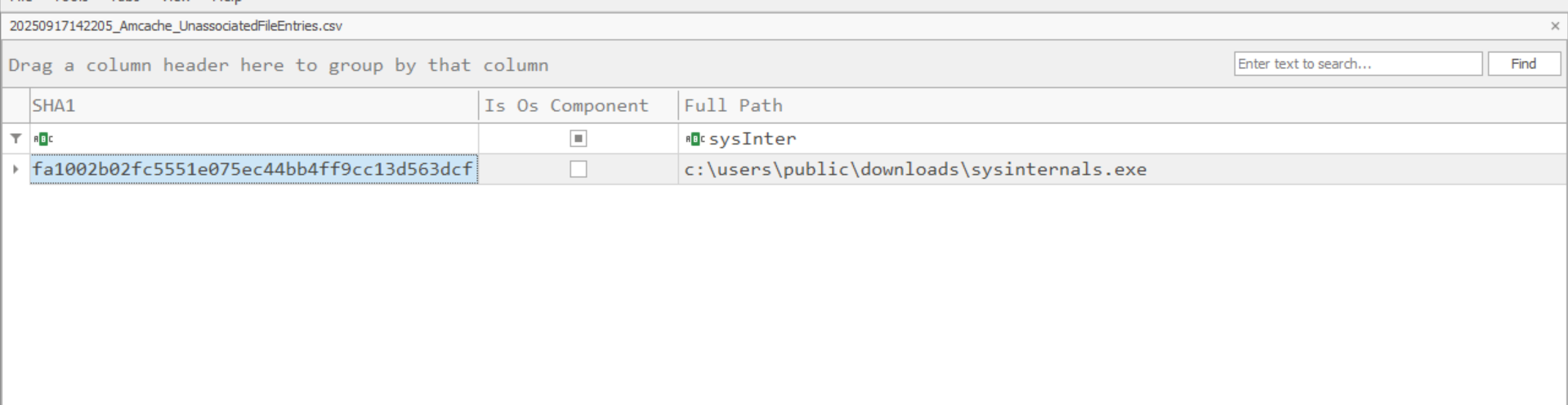

To view the CSV file, open TimeExplorer and open the file called Amcache_UnassociatedFileEntries.csv Then look for the suspicious binary we found in the Downloads folder.
SHA1 hash:
1
fa1002b02fc5551e075ec44bb4ff9cc13d563dcf
Q4. Based on the Alibaba vendor, what is the malware’s family?

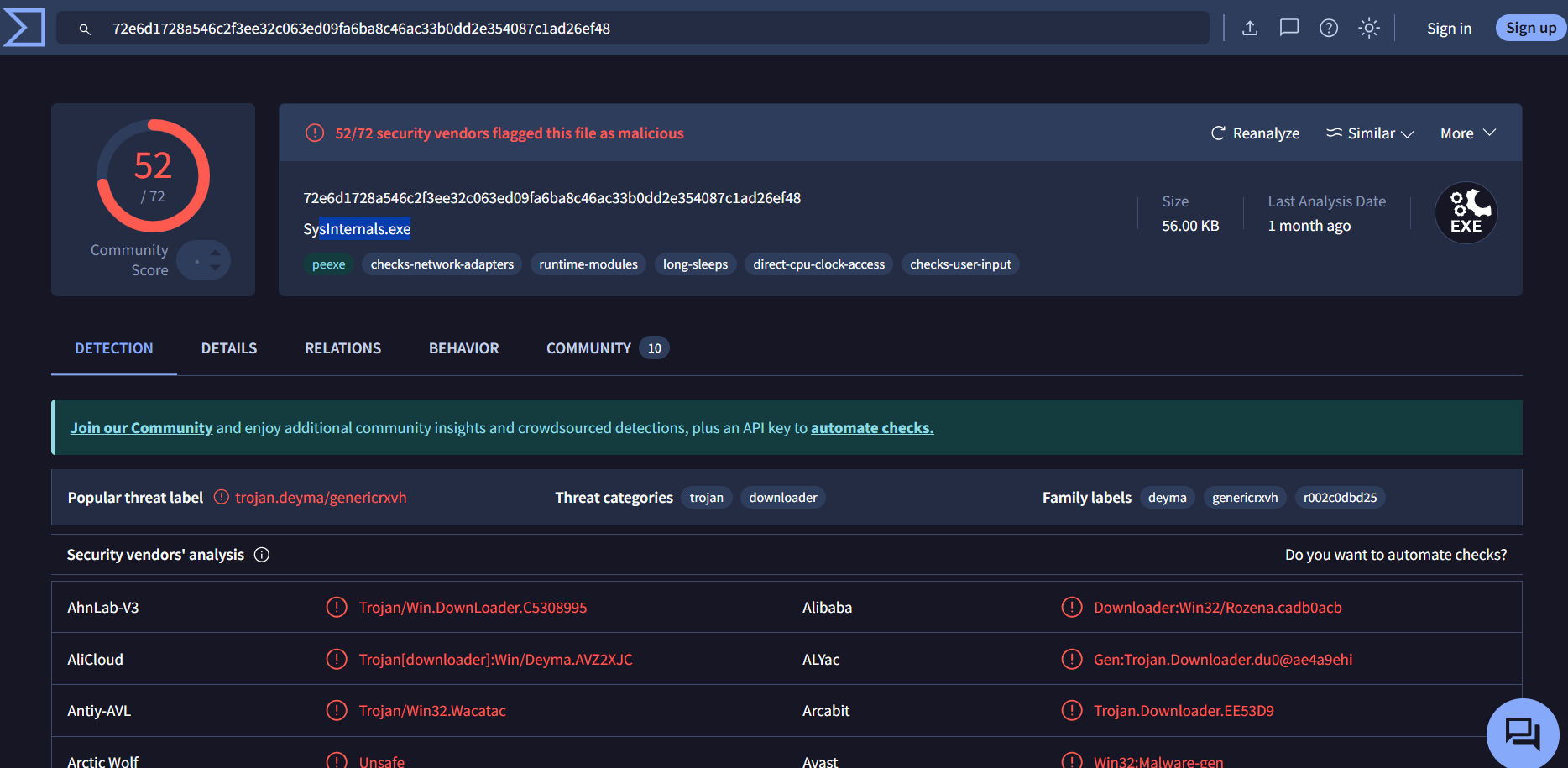

Perform a hash lookup in Virustotal using the hash we identified from the previous task.
The suspicious executable is flagged as malicious malware, categorized as Trojan, and the family label assigned is Rozena. According to this source, Rozena’s family is a Trojan that opens a back door on the compromised computer to download and install additional malware.
Q5. What is the first mapped domain’s Fully Qualified Domain Name (FQDN)?

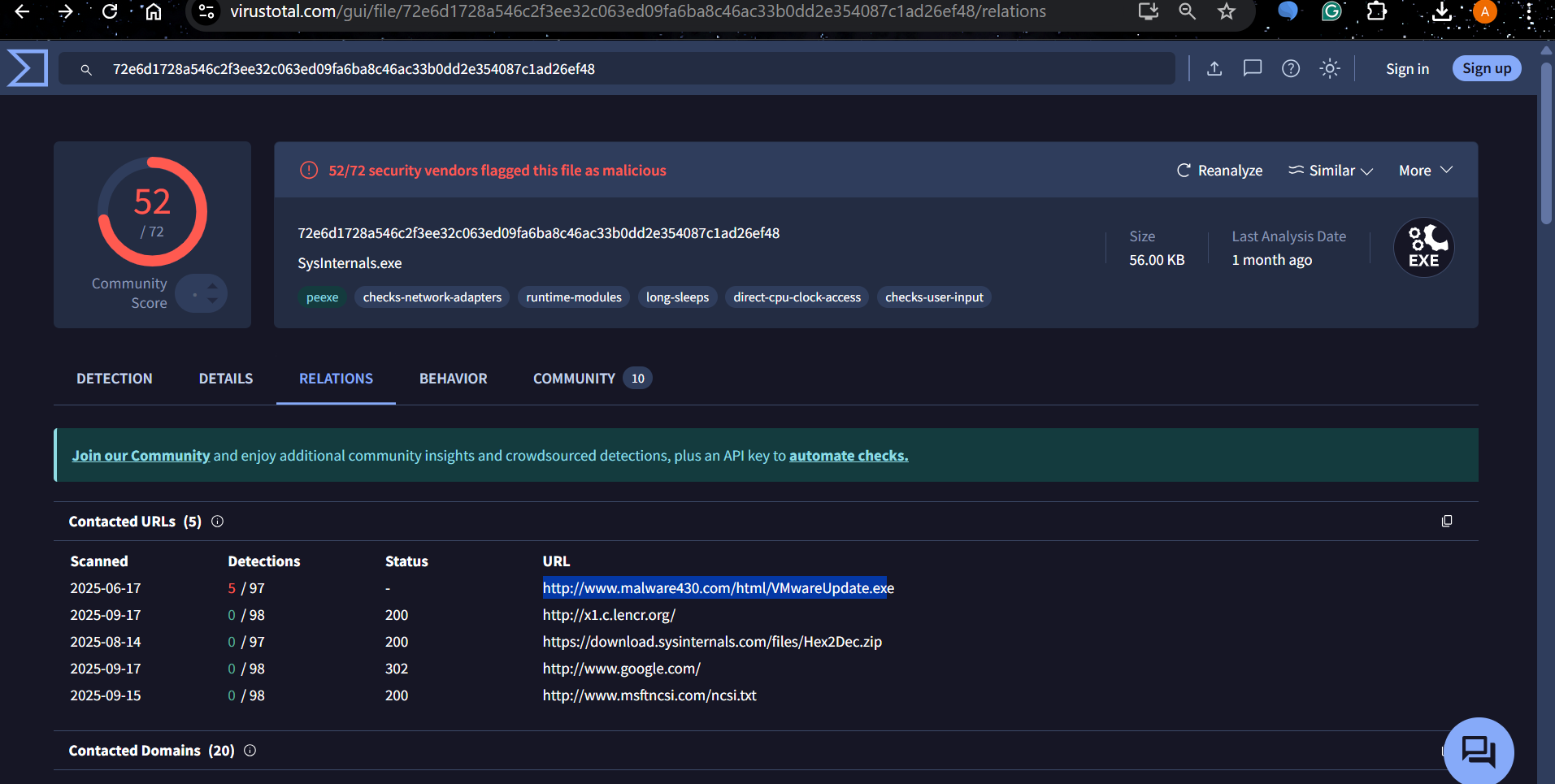

We can find this in the Relations tab
The first mapped domain is
1
www[.]malware430[.]com
Q6. The mapped domain is linked to an IP address. What is that IP address?

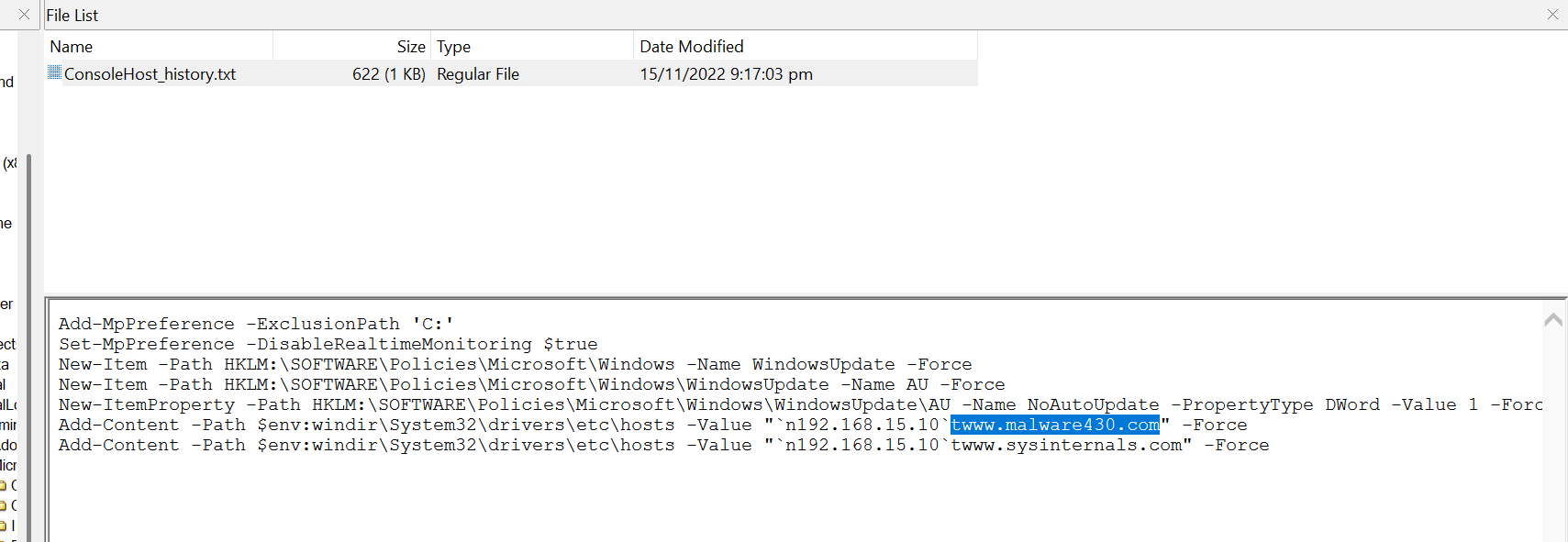

Investigate the PowerShell logs to view if any unauthorized activities were executed to alter the network configuration or redirect traffic. The PowerShell command history file is located under this directory:
Users\IEUser\AppData\Roaming\Microsoft\Windows\PowerShell\PSReadLine
These two commands were used to modify the hostsfile configuration to redirect requests sent from these two domains to the same IP address “192.168.15.10”
1
2
Add-Content -Path $env:windir\System32\drivers\etc\hosts -Value "`n192.168.15.10`twww.malware430.com" -Force
Add-Content -Path $env:windir\System32\drivers\etc\hosts -Value "`n192.168.15.10`twww.sysinternals.com" -Forc
This is a common technique used by the attacker to reroute legitimate traffic to malicious servers.
Q7. What is the name of the executable dropped by the first-stage executable?

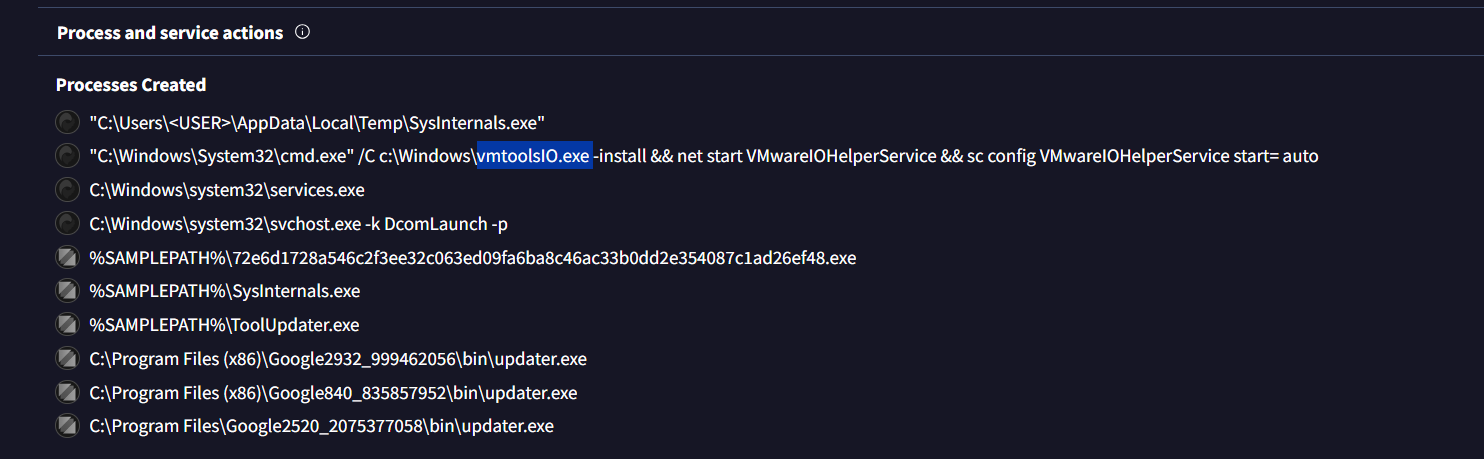

To identify the executable dropped by the first-stage malware, view the Behaviour tab in Virustotal
Under the Process and service actions, we can see that upon the execution of the malware SysInternals.exe It spawns a command prompt that installs a secondary executable named vmtoolsIO.exe and configure a new service called VMwareIOHelperService that will be started automatically.
Q8. What is the name of the service installed by 2nd stage executable?
Based on this command, we found from the previous task
1
"C:\Windows\System32\cmd.exe" /C c:\Windows\vmtoolsIO.exe -install && net start VMwareIOHelperService && sc config VMwareIOHelperService start= auto
The next service installed and configured to start automatically is → VMwareIOHelperService
